How to Do a Cross Certification (One Way)

Mindwatering Incorporated

Author: Tripp W Black

Created: 08/01/2000 at 11:12 PM



Category:
Domino - User Setup Information
Changing User Information

Overview:
First Part
The requesting user seeking access to a foreign server must request the cross certificate - it is mailed to the administrator of the foreign server.

Second Part
The administrator who receives the certificate grants the cross certificate.

Note
The person seeking access is sometimes likely to need to do a connection document so that Notes knows how to contact the foreign server.


First Part -- Step-by-Step

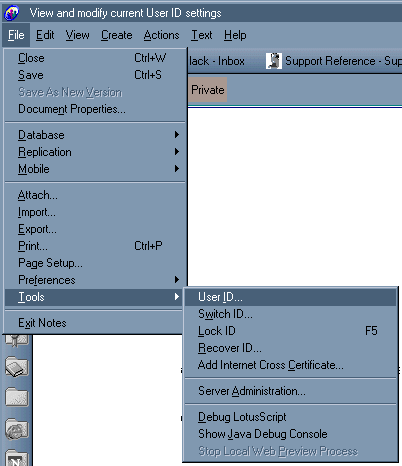

  • The requesting user chooses "File" and then chooses "Tools" and then chooses "User ID..."
(see Image One below within this section)
  • The requesting user enters their Notes password to re-authenticate.

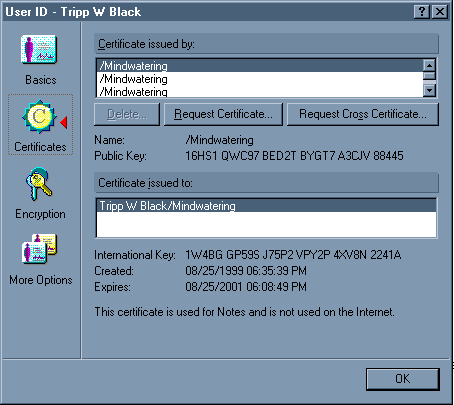

  • Within the User ID Dialog box, select the "Certificates" button tab.
    (see Image Two below within this section)
  • Press the "Request Cross Certificate..." button.
    (see Image Two below within this section)

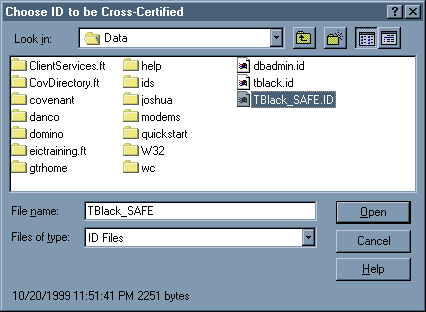

  • In the file browsing dialog box, locate and select the ID to be cross certified and press the "Open" button.
    (Ideally, you should use a "safe copy" which is also created within the User ID dialog box in another section.)
    Hide details for Image Two - Certification ID SelectionImage Two - Certification ID Selection

    The User ID Dialog Box with Certificates Selected


    Chosing of the ID to be Cross-Certified


    dd

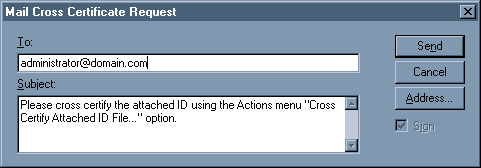

  • In the "Mail Cross Certificate Request" dialog box, enter in the remote foreign administrator's email and press the "Send" button.
    (see Image Three below within this section)
  • The ID is now emailed to the administrator who will complete the second part. When the administrator is done, the user can access the foreign server.



Second Part -- Step-by-Step
  • The administrator receives the email and opens it.
  • Within the email is an attachment with a file ending in "idx".
    (see Image One below within this section)

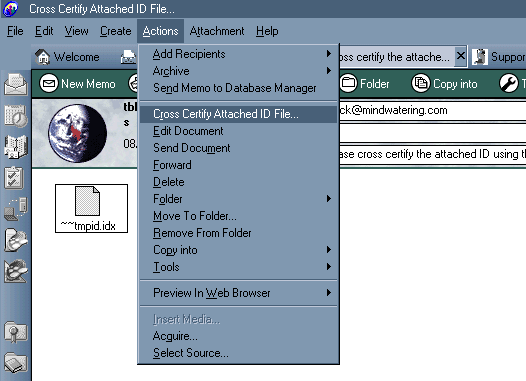

  • The administrator chooses "Actions" on the Notes menubar and then chooses "Cross Certify Attached ID File..."
    (see Image One below within this section)
  • In the file browsing dialog box, locate and select the certifier ID. Press the "Open" button.
    (see Image Two below within this section)
  • In the cross certify screen, verify you are using the correct certifier ID, the server, and that you have the requesting user's name.
    (see Image Two below within this section)
  • Press the "Cross Certify" button.
    (see Image Two below within this section)
    Hide details for Image Two - Cert ID ScreensImage Two - Cert ID Screens

    Choose your certification ID. Usually named cert.id


    The certifier should show your domain (the host/foreign server's domain)
    Make sure the server shows the server the remote requestor is going to use.
    Also make sure the Subject name is the person rather than just the domain (Tripp W Black/LIB/Wake County vs. /Wake County)

You will see in the status bar, in the bottom middle of your lower Notes bar, message saying that it is adding the certificate and the user's keep to the address book. Once this is completed, cross certification is complete.
